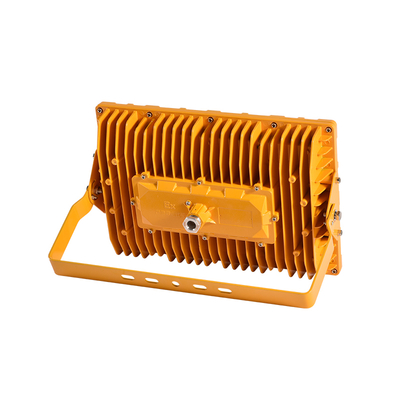

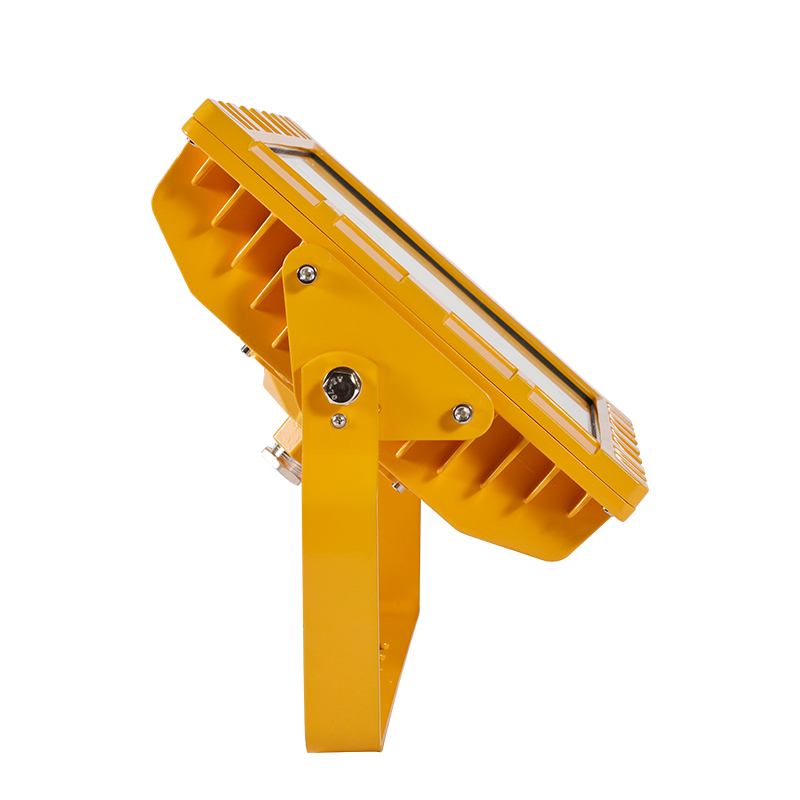

High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc đại lục |
| Hàng hiệu: | Finboard |
| Chứng nhận: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Số mô hình: | RFEPL97 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 10 PC |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Gói hộp + bong bóng hoặc tùy chỉnh |
| Thời gian giao hàng: | 10-15 ngày hoặc xác nhận |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây |
| Khả năng cung cấp: | 5000 chiếc / THÁNG |
|
Thông tin chi tiết |
|||
| Từ khóa: | Đèn chiếu sáng chống nổ LED Idlectrial | Quyền lực: | 50w 100w 150w 200w |
|---|---|---|---|
| Tài xế: | AC100-265V | Cấp độ bảo vệ: | IP66 |
| Nhiệt độ màu: | 5500-6500K | Cách sử dụng: | Những nơi nguy hiểm |
| Làm nổi bật: | IP65 waterproof explosion proof lamp,hazardous area lighting 50w 200w,explosion proof lighting fixtures with warranty |
||
Mô tả sản phẩm
High Grade Hazardous Area Lighting IP65 Waterproof Explosion Proof Lamp 50W 100W 150W 200W
Product Attributes
| Attribute | Value |
|---|---|
| Keywords | Industrial LED Explosion Proof Lighting Fixtures |
| Power | 50W 100W 150W 200W |
| Driver | AC100-265V |
| Protection Level | IP66 |
| Color Temperature | 5500-6500K |
| Usage | Hazardous Places |
Characteristics
Optical Performance
- High-efficiency SMD2835/3030 LEDs delivering 100-110 lm/W
- 5500-6500K cool white light with ≥80 CRI
- Optimized optical design for 120° beam angle
Electrical Features
- Wide voltage input (100-265V AC)
- <0.5% total harmonic distortion
- Power factor >0.95
- Surge protection up to 4kV
Robust Safety Features
- IP65-rated waterproof/dustproof construction
- Explosion-proof certification for Zone 1/2 hazardous areas
- Corrosion-resistant surface treatment
- Impact-resistant tempered glass (IK08 rating)
- Spark-free operation design
Thermal Management System
- Advanced cooling fins design (30% more surface area)
- Temperature-controlled driver compartment
- Automatic power regulation at high temperatures
- Maintains LED junction temperature below 85°C
Specifications
| Model | RF-97II Series |
|---|---|
| Power Options | 50W / 100W / 150W / 200W / 240W / 300W |
| Material | Aluminum Alloy + Tempered Glass |
| Dimensions (mm) | 250×170×132 (50W) to 460×310×150 (300W) |
| Voltage | AC 100-265V (Auto-Sensing) |
| Light Source | High-Efficiency SMD2835/3030 LEDs |
| IP Rating | IP66 (Dustproof & Waterproof) |
| CRI | ≥Ra80 |
| Color Temp. | 5500-6500K (Cool White) |
| Light Efficacy | 100-110 lm/W |
| Certifications | ATEX, IECEx, CE, RoHS (Customizable) |
Introduction
Industrial LED explosion-proof lighting fixtures are essential for hazardous environments where safety, durability, and high-performance illumination are critical. Our RF-97II Series offers a range of 50W, 100W, 150W, 200W, 240W, and 300W models, designed for Zone 1/2 (gas) and Zone 21/22 (dust) applications. With an IP66 rating, robust construction, and energy-efficient LED technology, these fixtures ensure reliable operation in extreme conditions such as mining, oil refineries, chemical plants, and gas stations.
