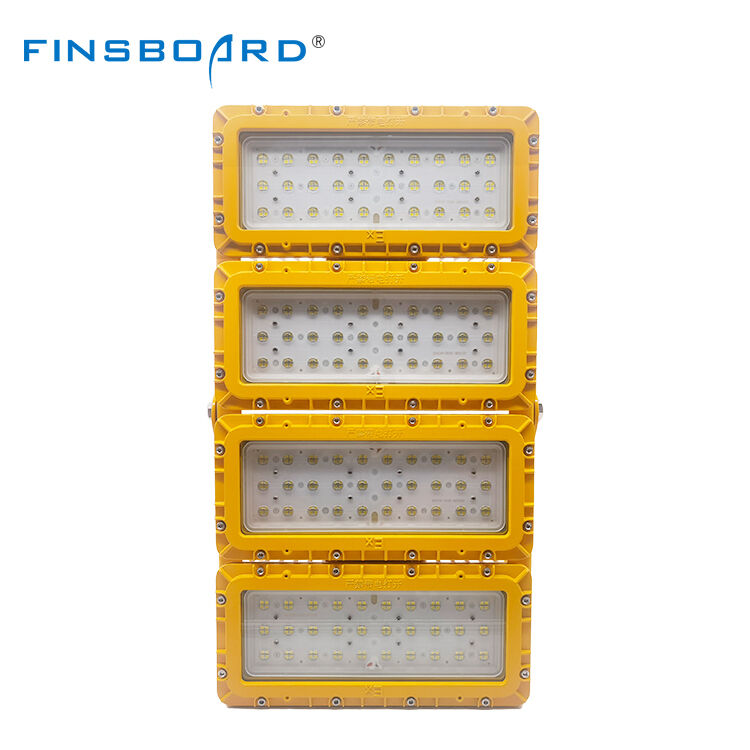

600W LED Explosion Proof Flood Light 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66 Die-Cast Aluminum ADC12
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | ECER |
| Chứng nhận: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| Số mô hình: | EPFL-600W-HLD |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 10 chiếc |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Gói hộp + bong bóng hoặc tùy chỉnh |
| Thời gian giao hàng: | 10-15 ngày hoặc xác nhận |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 5000 chiếc / tháng |
|
Thông tin chi tiết |
|||
| Quyền lực: | 600W | Quang thông: | 72000lm |
|---|---|---|---|
| Hiệu quả: | 120lm/w | Góc chùm tia: | 15° |
| Nhiệt độ màu: | 5000k | Chip dẫn: | Bridgelux SMD 3030 |
| Xếp hạng IP: | IP66 | Vật liệu nhà ở: | Nhôm đúc ADC12 với lớp phủ hàng hải |
| Nhiệt độ hoạt động: | -40°C đến +55°C | Chứng nhận: | IECEx Ex d IIC T6 Gb |
| Tuổi thọ: | ≥50.000 giờ L70 | Bảo hành: | 5 năm |
| Làm nổi bật: | 600W LED explosion proof flood light,Helideck helicopter CAP 437 flood light,IECEx IP66 die-cast aluminum flood light |
||
Mô tả sản phẩm
600W LED Explosion Proof Flood Light - 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66
The EPFL-600W-HLD is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Helideck-Certified 15° Beam - Ultra-narrow beam engineered for offshore helideck perimeter illumination, compliant with CAP 437 and ICAO Annex 14 heliport lighting requirements
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore helicopter decks, helideck perimeter lighting, FPSO helicopter landing areas compliant with CAP 437:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-HLD |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Beam Angle | 15° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +55°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HLD design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
